NEW 8 COIL MINI HUMBUCKER

PRICE. £240

Our all new 8 COIL MINI

Designed as a replacement for Factory type Bass Guitars using the Soap-Bar sized or 35DC type pickup. Featuring full Earth shielding & 8 individual Hand Scatter wound, (reverse wound, reverse polarity), matched coils . The Pickup is very quiet in operation with an absolute minimum of cross talk between strings.

Wired directly as a full Humbucker , the pickup has a near transparent bass response , giving a precise, full & detailed tone. Wired as 2 pseudo single coils, produces a slightly brighter response with a sweetness , exceptional clarity & definition with minimum noise.

This pickup is suited to higher quality Instruments as the tone woods used in a Bass Guitar play a big part in the overall tonal qualities with a pickup of this type fitted..

Connects directly to Series wired, standard factory electronics or can be wired passively. Instruments require a pickup cavity with a minimum 21mm depth to use the 8 coil MINI pickup. This pickup is highly suited to hand made Bass guitars & Franken-Basses using existing Necks & Bodies of a high build quality.

SPEC.

Individual Neodymium rare earth Magnets

Hand scatter wound coils with 42 AWG plain enamel wire 10 K.Ohm output D.C

5 point wiring on all 3 model options;

---------------------------------------------------------

Option 1. standard 8 coil MINI pickup

Available Coil outputs=

All 8 coils / full humbucker +

 2x pseudo single (4) coil outputs

---------------------------------------------------------

Option 2. split 8 coil MINI pickup

All 8 coils / full humbucker + Split-p & reverse Split-p outputs =maximum tonal flexibility

---------------------------------------------------------

Option 3. 1 Humbucker per string 8 coil MINI pickup.

PLEASE NOTE* this version can only be used with an active coil balancing pre-amp* & has a single output option of all 8 coils together.

---------------------------------------------------------

All of our 8 coil MINI pickups are Wax saturated (potted) against Microphonic feedback. With Earthed steel chassis plates & adjustable Pole pieces, just like our popular MM 8 Coil.

Standard Coil Magnet polarities

Front: South,

Rear:  North

Handmade covers with many colour options as standard. Including Black & White



DIMENSIONS.

Length 89 mm  Width 38 mm

Height 23 mm

Screw spacings: 81.5 mm

Pole spacings: 1-4 = 57 mm

 PRICE. £240

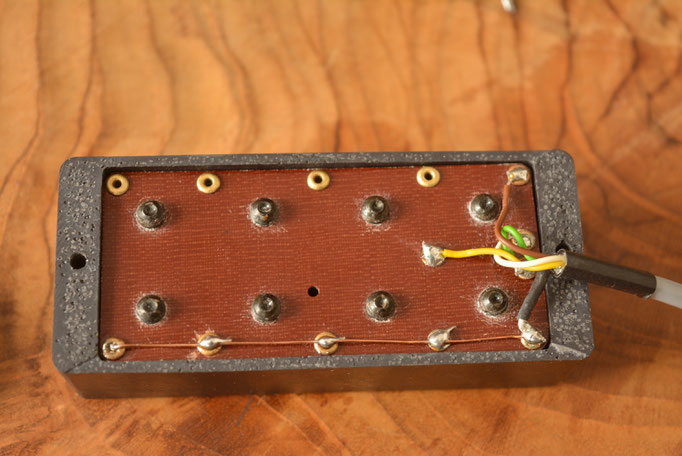

8 COIL MINI, 1 HUMBUCKER PER STRING TYPE 5 point wiring
8 COIL MINI, 1 HUMBUCKER PER STRING TYPE 5 point wiring

ALL Herrick pickups are supplied with fixing screws & metal coil springs. We strongly advise against using a FOAM type cushioning under our pickups as FOAM can distort or damage the pickup covers we produce & interfere with the pickup's ability to function correctly.
