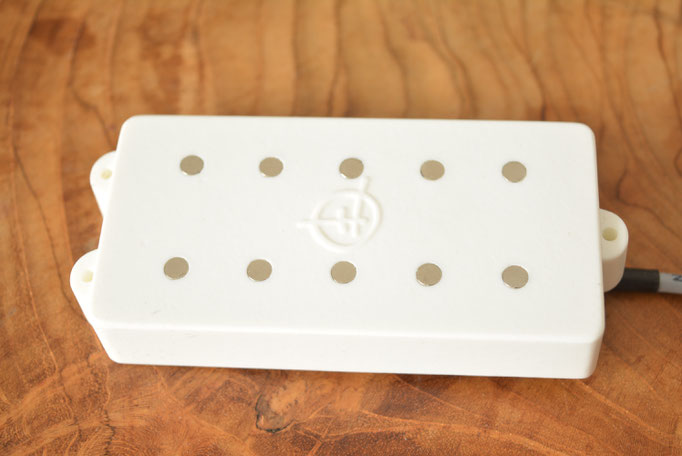

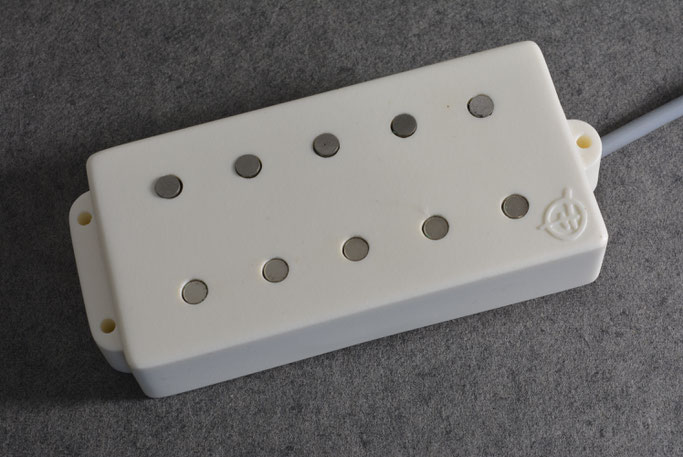

MM NEO 5 HUMBUCKER

MM Factory type 5 string pickup

PRICE £110

A modern drop in replacement for 5 string MM Factory type Bass Guitar. Featuring Steel poles with individual Neodymium rare earth  Magnets . At 18 K.Ohm D.C ,the pickup has a hotter output than standard MM , O.L.P replacement units . Hand scatter wound , (reverse wound, reverse polarity) coils for a tight & punchy  bass response with more aggressive tonal variation than a standard factory alnico unit. connects directly to existing MM factory electronics or can be wired passively, earth shielded for low noise. A sensible choice for upgrade requiring no body reworking or molestation of your instrument.

Both versions of this pickup are available in Flat top or Staggered height magnet versions to cope with different radius fingerboards.

SPEC.

Steel poles & individual Neodymium rare earth Magnets

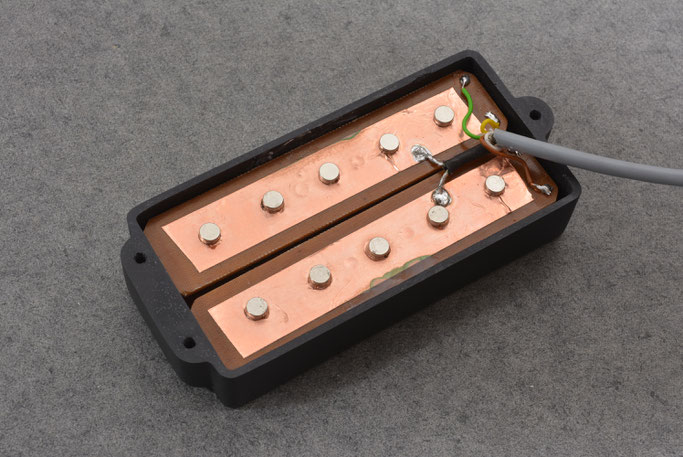

Hand scatter wound with 42 AWG plain enamel wire 18 K.Ohm output D.C

(please contact for other output options)

Rivet anchored coil ends

Tough Phenolic flatwork as standard

5 point wiring for full Humbucking or 2x single coil options (RW,RP)

Wax saturated (potted) against Microphonic feedback

Standard Coil Magnet polarities Front: South, Rear:  North

Handmade covers with colour options

DIMENSIONS.

MM Factory types, 1 ear / 1 bar , 3 ear & soap bar cover types.

Length 112 mm  Width 50 mm Height 18 mm

Screw spacings: 103 mm

Pole spacings: 1-5 = 66.9 mm

PRICE  £110

ALL Herrick pickups are supplied with fixing screws & metal coil springs. We strongly advise against using a FOAM type cushioning under our pickups as FOAM can distort or damage the pickup covers we produce & interfere with the pickup's ability to function correctly.
