MM MUTANT HUMBUCKER

PRICE £90

An ultra-modern replacement for 4 string MM & O.L.P type Bass Guitars. Twin coil Humbucker Featuring 1 coil with Neodymium rare earth Magnets, the 2nd coil with AlNico 5's to give enhanced tonal variation when wired through a standard 3 way coil selector switch. At 16 K.Ohm D.C ,the pickup has a hotter output than standard MM , O.L.P replacement units but with zero distortion  . Hand scatter wound , (reverse wound, reverse polarity) coils, as you would expect from us, for a tight & punchy  bass response with 3X the tonal variation than a standard factory alnico unit. connects directly to existing MM factory electronics or can be wired passively.  Earth shielded for low noise. A flexible tonal upgrade requiring a minimum of body reworking or molestation of your instrument.

SPEC.

Steel poles & individual Neodymium rare earth Magnets & AlNiCo 5 Magnets

Hand scatter wound with 42 AWG plain enamel wire 16 K.Ohm output D.C

(please contact for other output options)

Rivet anchored coil ends

Tough Phenol flatwork as standard

5 point wiring for full Humbucking or 2x single coil options (RW,RP)

Wax saturated (potted) against Microphonic feedback

Standard Coil Magnet polarities, Front: South, Rear:  North

Coil configuration, Front: AlNiCo 5's, Rear: Neo's

Handmade Graphite loaded covers with Mutant colour options



DIMENSIONS.

Length 102mm  Width 49mm Height 20mm

String spacings 57mm  Screw spacings 95mm



PRICE  £90

*Also available in a 5 & 6 string version !



Wiring diagram

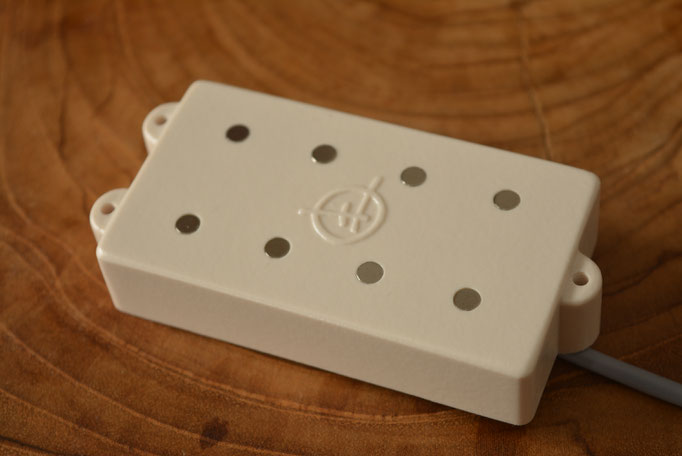

MM Mutant in Cream
MM Mutant in Cream

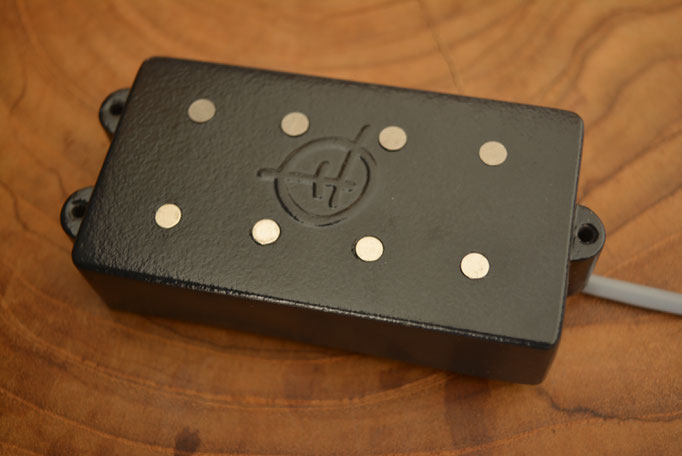

MM Mutant with Blackout cover
MM Mutant with Blackout cover

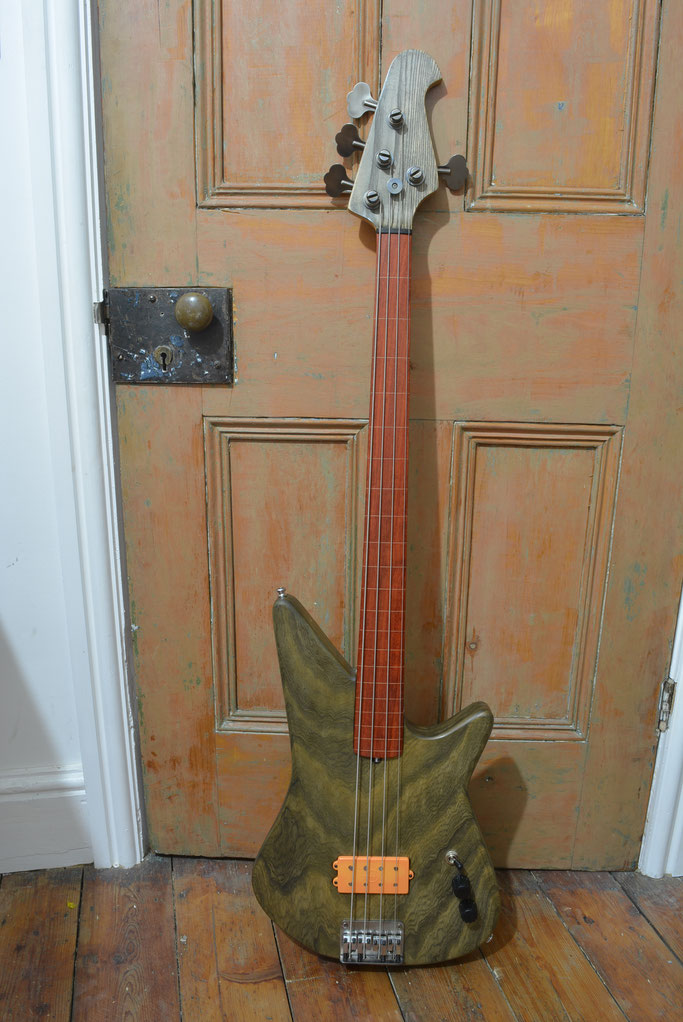

Big Al fretless copy bass with Mutant pickup in Blood Orange
Big Al fretless copy bass with Mutant pickup in Blood Orange
High figure Ash body stained with Haguro, an ancient Japanese stain made by boiling iron filings in rice vinegar
High figure Ash body stained with Haguro, an ancient Japanese stain made by boiling iron filings in rice vinegar

ALL Herrick pickups are supplied with fixing screws & metal coil springs. We strongly advise against using a FOAM type cushioning under our pickups as FOAM can distort or damage the pickup covers we produce & interfere with the pickup's ability to function correctly.
