10 COIL HUMBUCKER FOR 5 STRING MM FACTORY TYPE BASS

10 coil pickup cover options 1. Soapbar / 2. 1 Ear & 1 Bar / 3. 3 Ears type .
10 coil pickup cover options 1. Soapbar / 2. 1 Ear & 1 Bar / 3. 3 Ears type .

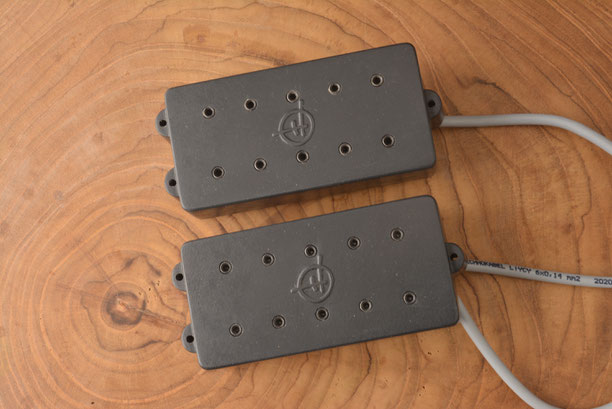

MM factory type 10 coil pickup KURO
MM factory type 10 coil pickup KURO

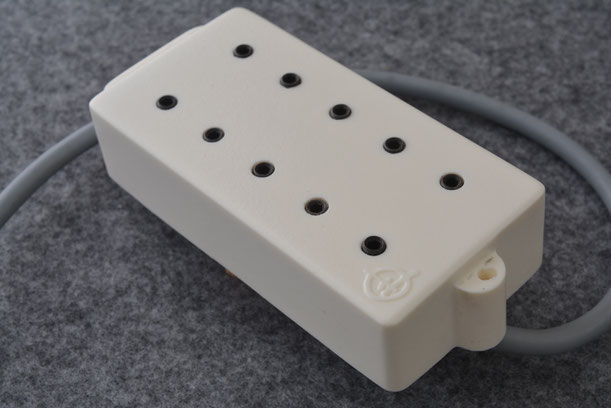

MM 10 coil SHIRO
MM 10 coil SHIRO

PRICE. £290

Our all new 10 COIL

Designed as a replacement for MM Factory type Bass Guitars. Featuring full Earth shielding & 10 individual Hand Scatter wound, (reverse wound, reverse polarity), matched coils . The Pickup is very quiet in operation with an absolute minimum of cross talk between strings.

Wired directly as a full Humbucker , the pickup has a near transparent bass response , giving a precise, full & detailed tone. Wired as 2 pseudo single coils, produces a slightly brighter response with a sweetness , exceptional clarity & definition with minimum noise.

This pickup is suited to higher quality Instruments as the tone woods used in a Bass Guitar play a big part in the overall tonal qualities with a pickup of this type fitted..

Connects directly to the MM factory electronics or can be wired passively.

PLEASE NOTE: The 10 coil pickup sits deeper in a Bass Guitar than a standard MM type Humbucker . Instruments require a pickup cavity with a minimum 25mm depth to use the 10 coil pickup. To use this type of pickup in a standard Instrument, may require a reworking of the pickup cavity to a greater depth, this pickup is highly suited to hand made Bass guitars & Franken-Basses using existing Necks & Bodies of a high build quality.

SPEC.

Individual Neodymium rare earth Magnets

Hand scatter wound coils with 42 AWG plain enamel wire 20+ K.Ohm output D.C

5 point wiring on all 3 model options;

---------------------------------------------------------

Option 1. standard 10 coil pickup

Available Coil outputs=

All 10 coils / full humbucker +

 2x pseudo single (5) coil outputs

---------------------------------------------------------

Option 2. split 10 coil pickup

All 10 coils / full humbucker + Split-p & reverse Split-p outputs =maximum tonal flexibility

---------------------------------------------------------

Option 3. 1 Humbucker per string 10 coil pickup.

PLEASE NOTE* this version can only be used with an active coil balancing pre-amp* & has a single output option of all 10 coils together.

---------------------------------------------------------

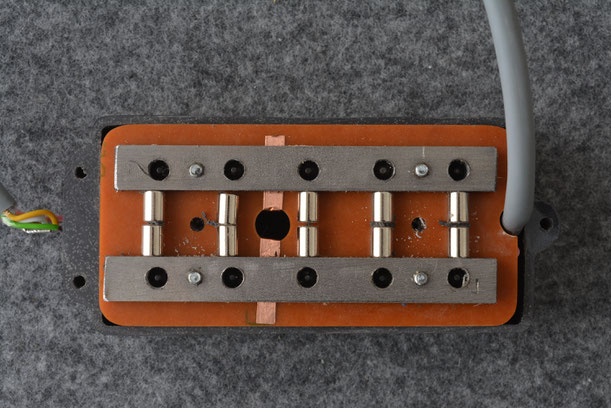

All of our 10 coil pickups are Wax saturated (potted) against Microphonic feedback. With Earthed steel chassis plates & adjustable Pole pieces, just like our popular 8 Coil.

Standard Coil Magnet polarities

Front: South,

Rear:  North

Handmade covers with many colour options as standard. Including Black & White



DIMENSIONS.

MM Factory type only.

Length 112 mm  Width 50 mm

Height 28 mm

Screw spacings: 103 mm

Pole spacings: 1-5 = 66.9 mm

 PRICE. £290

A Pair of 3 Eared type 10 Coil humbuckers in the 1 Humbucker per string wiring option.
A Pair of 3 Eared type 10 Coil humbuckers in the 1 Humbucker per string wiring option.
10 Coil pickup 3 fixing ears type with thumb rest surround. Price £310
10 Coil pickup 3 fixing ears type with thumb rest surround. Price £310

ALL Herrick pickups are supplied with fixing screws & metal coil springs. We strongly advise against using a FOAM type cushioning under our pickups as FOAM can distort or damage the pickup covers we produce & interfere with the pickup's ability to function correctly.
