10 Coil Blackout. Variable string spacings version

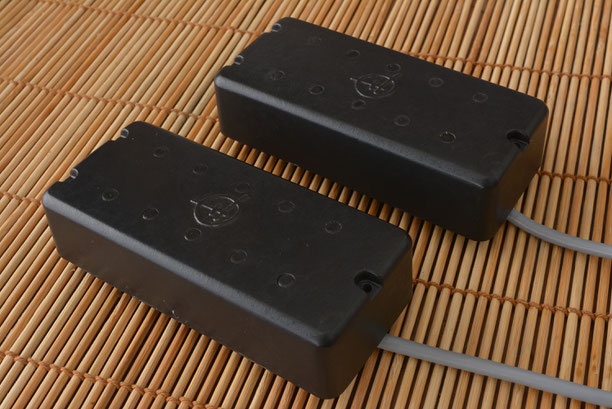

Blackout 10 coil pickups with Soap-bar type covers
Blackout 10 coil pickups with Soap-bar type covers

 PRICE for a single pickup. £290

Our all new 10 COIL Blackout Variable string spacings edition for 5 string Bass. Can be built to order with your exact string spacing requirements ranging between 15mm & 18mm string-to-string or 60mm-72mm overall

Designed as a replacement for Non MM standard Bass Guitar string spacings . Featuring full Earth shielding & 10 individually Hand Scatter wound, (reverse wound, reverse polarity), matched coils . The Pickup is very quiet in operation with an absolute minimum of cross talk between strings.

Wired directly as a full Humbucker , the pickup has a near transparent bass response , giving a precise, full & detailed tone. Wired as 2 pseudo single coils, produces a slightly brighter response with more tonal sweetness than a standard humbucker, exceptional clarity & definition with minimum noise.

This pickup is suited to higher quality Instruments as the tone woods used in a Bass Guitar play a big part in the overall tonal qualities with a pickup of this type fitted..

Connects directly to the MM factory electronics or can be wired passively.

PLEASE NOTE: The Blackout 10 coil pickup sits deeper in a Bass Guitar than a standard MM type Humbucker . Instruments require a pickup cavity with a minimum 25mm depth to use the 10 coil pickup. To use this type of pickup in a standard Instrument, may require a reworking of the pickup cavity to a greater depth, this pickup is highly suited to hand made Bass guitars & Franken-Basses using existing Necks & Bodies of a high build quality.

SPEC.

Individual Neodymium rare earth Magnets

Hand scatter wound coils with 42 AWG plain enamel wire 18+ K.Ohm output D.C

multi point wiring on all 3 model options;

---------------------------------------------------------

Option 1. standard 10 coil pickup

Available Coil outputs=

All 10 coils / full humbucker +

 2x pseudo single (5) coil outputs

---------------------------------------------------------

Option 2. split 10 coil pickup

All 10 coils / full humbucker + Split-p & reverse Split-p outputs =maximum tonal flexibility

---------------------------------------------------------

Option 3. 1 Humbucker per string 10 coil pickup.

PLEASE NOTE* this version can only be used with an active coil balancing pre-amp* & has a single output option of all 10 coils together.

---------------------------------------------------------

All of our 10 coil pickups are Wax saturated (potted) against Microphonic feedback. With Steel chassis plates & Non-adjustable Pole pieces.

Standard Coil Magnet polarities

Front: South,

Rear:  North

Handmade covers with many colour options as standard. Including Black & White



DIMENSIONS.

MM Factory type only.

Length 112 mm  Width 49 mm

Height 27 mm

Screw spacings: 103 mm

Pole spacings: 1-5 = between 60 & 72 mm = string to string, between 15 & 18 mm

 PRICE per pickup. £290

ALL Herrick pickups are supplied with fixing screws & metal coil springs. We strongly advise against using a FOAM type cushioning under our pickups as FOAM can distort or damage the pickup covers we produce & interfere with the pickup's ability to function correctly.
